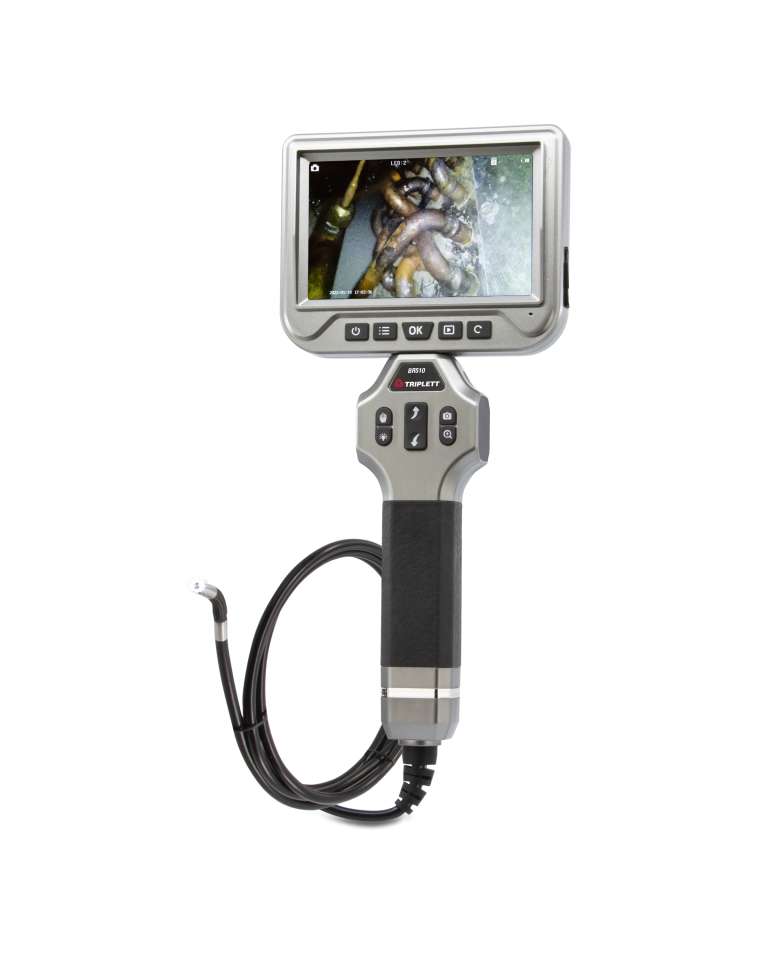

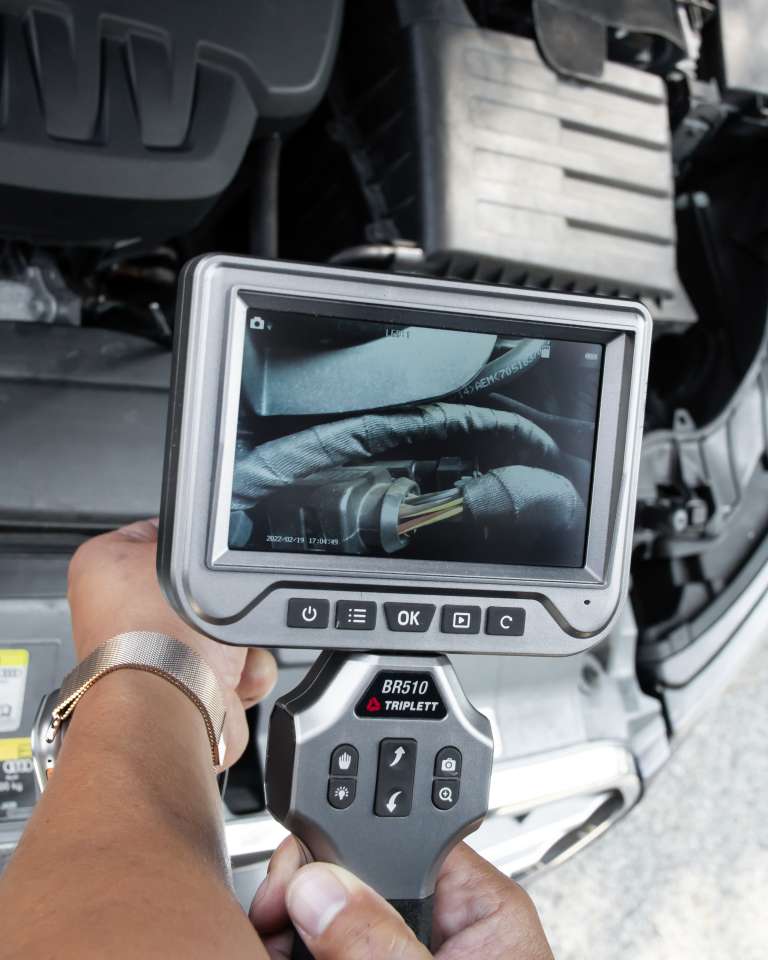

The Triplett BR510 High Definition Articulating Borescope inspection camera allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 6mm waterproof (IP67) camera with a 2-way articulating probe that adjusts 180° in both directions. 6 adjustable LEDs with 3 brightness levels can illuminate totally darkened areas for inspection. It features a 5" Color TFT LCD monitor with 1920 x 1080 resolution, a built-in clock/calendar, and the ability to record video (.AVI) and images (.JPG).
View captured video/images on the display or transfer to your PC using the USB interface or removable SD. You can store up to 19k images/20 minutes of video (3 minute files) on the included 4GB SD card. Freeze function while recording video. Includes Borescope, 1.5m articulating probe with 6mm camera, 5V Li-Po rechargeable battery, microSD card, USB cable, and camera accessories (magnet, hook, protective cap). 1 year warranty.
Features:
- Waterproof (IP67) 6mm camera
- 2-way articulating probe adjusts 180° in both directions
- 8 adjustable LEDs with 3 brightness levels can illuminate totally darkened areas for inspection
- 5" Color TFT LCD monitor with 1920 x 1080 resolution
- Built-in clock/calendar
- Record video (.AVI) and images (.JPG)
- Freeze function while recording video

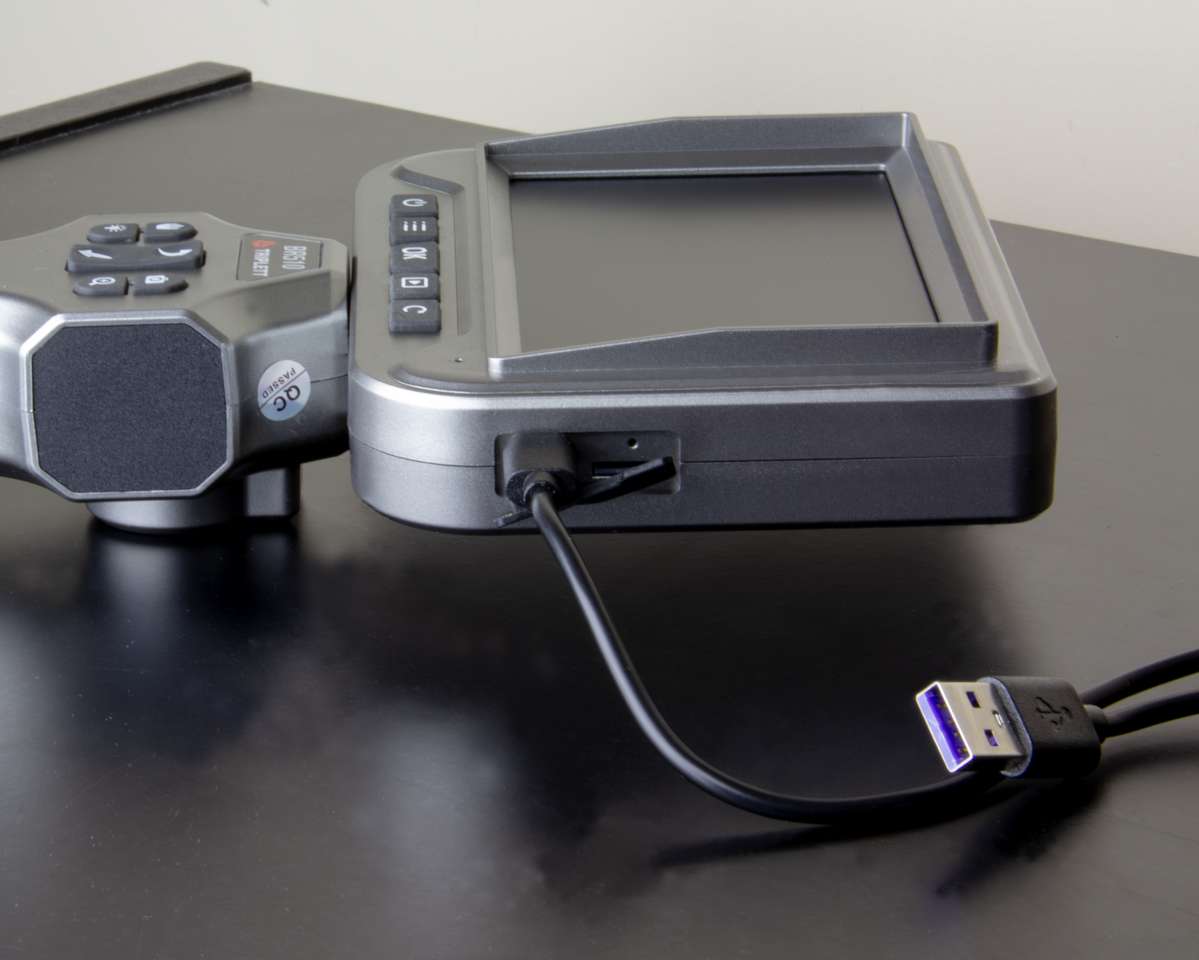

- View captured video/images on the display or transfer to your PC using the USB interface or removable SD card
- Store up to 19k images/20 minutes of video (3 minute files) on the included SD card
- Supports 12 languages (English, Spanish, French, German, Italian, Russian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Portuguese, Arabic)

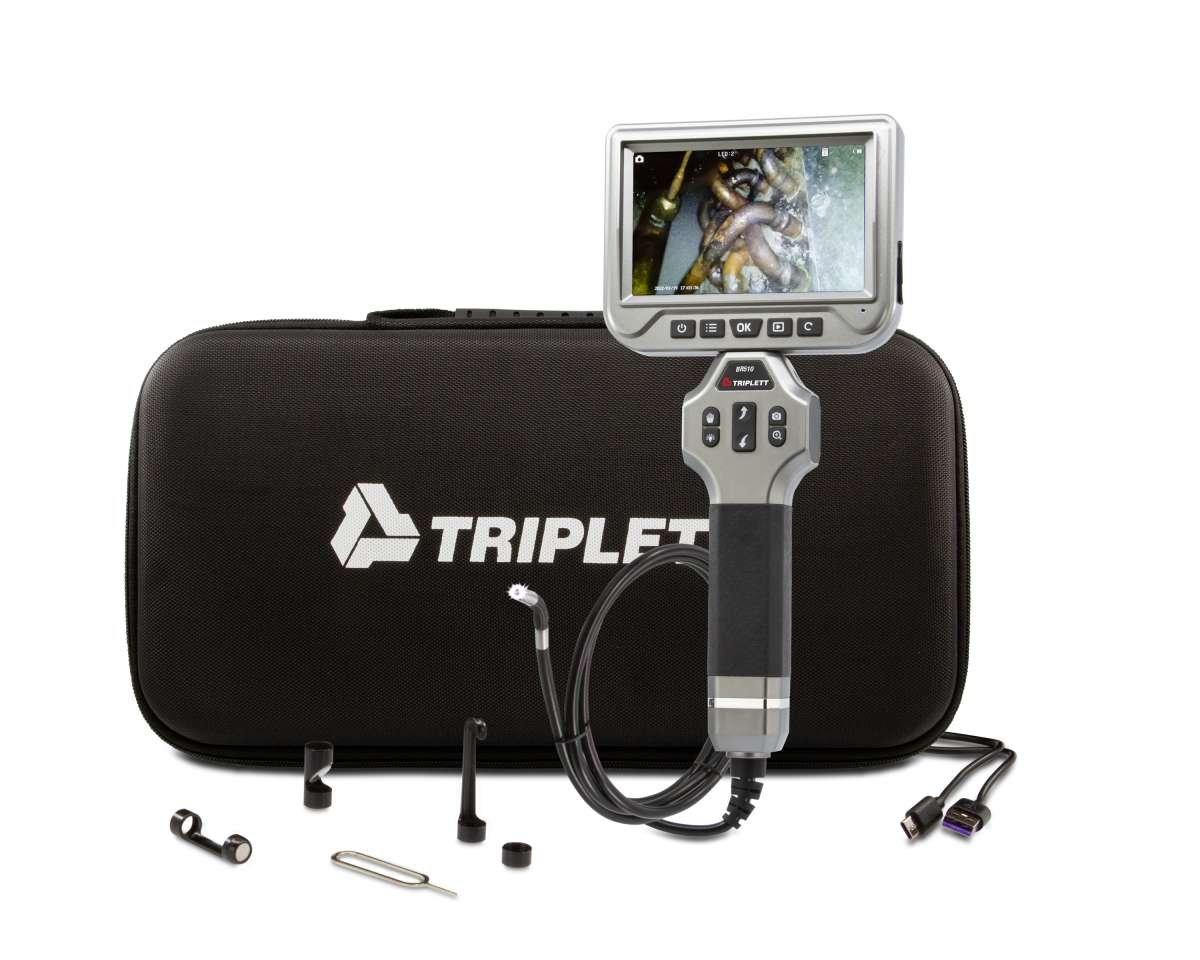

- Includes 1.5m articulating probe with 6mm camera, 5V Li-Po rechargeable battery, SD card, USB cable, and camera accessories (magnet, hook, protective cap)
Specifications |
Diameter |
6mm |
Field of View |
60° |
Depth of View |
1.2" to 4.0" (3cm to 10cm) |
Resolution |
1920 x 1080 |
Articulation |
360° (180° left, 180° right) |
Display Unit |
|
Display |
5" Color TFT (1920 x 1080 pixels) |
Interface |
USB |
Video Output Format |
NTSC or PAL |
Storage |
4G SD Card included |
Still Image Format |
JPEG (1920 x 1080) |
Video Recording Format |
AVI (1920 x 1080) |
Power |
5V Li-Po Battery |
Dimensions (Main Unit) |
7.8 x 5.4 x 2" (197 x 137 x 52mm) |
Weight |
1.1lbs (0.5kg) |
