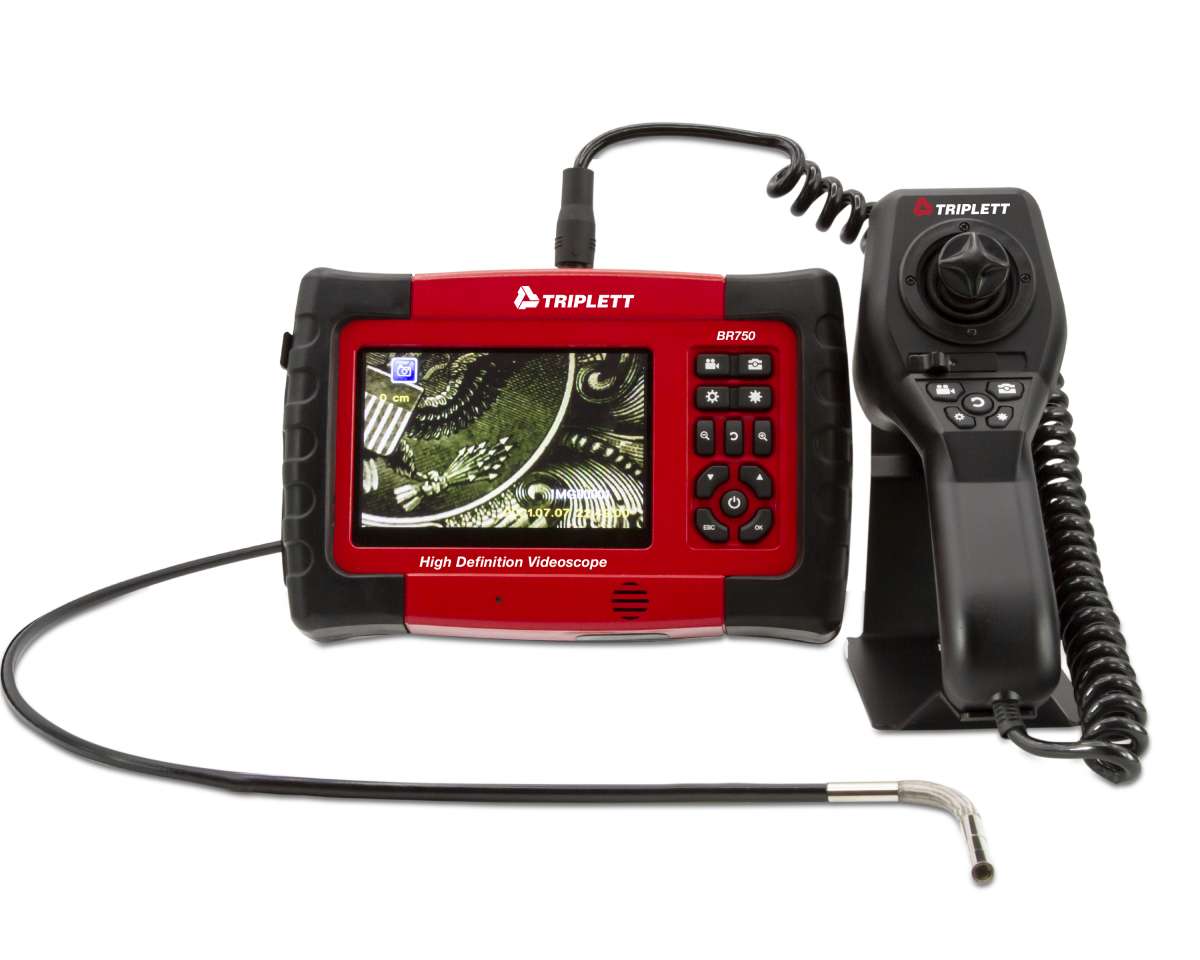

Triplett BR750 High Definition Articulating Videoscope

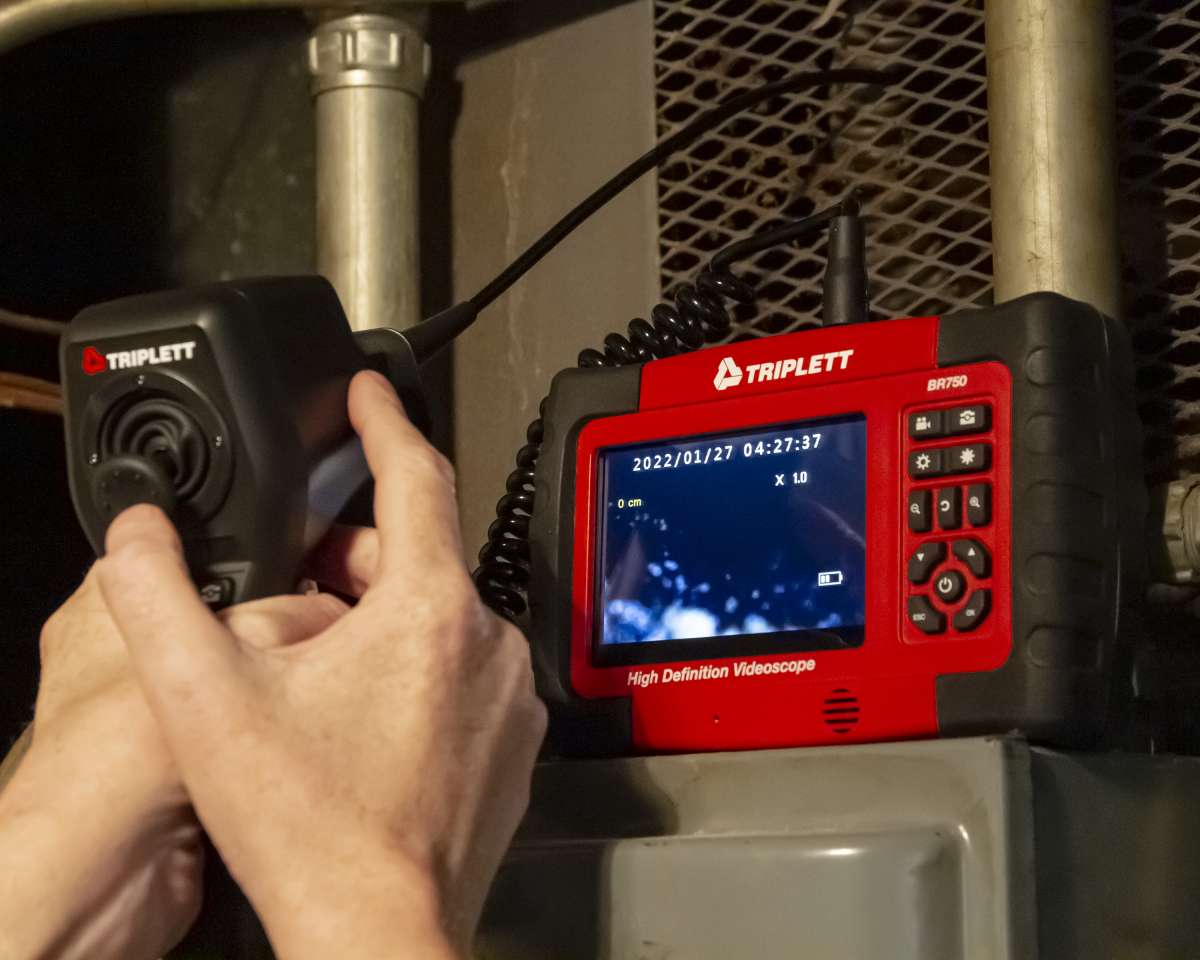

The Triplett BR750 High Definition Articulating Videoscope allows you to see behind walls and down drains which can save time and money on any repair or installation. It has a 6mm waterproof (IP67) camera with a joystick controlled articulating probe that adjusts 135° in all directions.

More info

Triplett BR750 High Definition Articulating Videoscope
Roll over image to zoom Click image to expand
  • Triplett BR750 High Definition Articulating Videoscope
  • Triplett BR750 High Definition Articulating Videoscope

The Triplett BR750 High Definition Articulating Videoscope allows you to see behind walls and down drains which can save time and money on any repair or installation. It has an 6mm waterproof (IP67) camera with a joystick controlled articulating probe that adjusts 135° in all directions.

4 adjustable LEDs can illuminate totally darkened areas for inspection. It features a 5" Color TFT LCD monitor with 800 x 480 resolution, 2X Zoom, Mirror image mode (vertical, horizontal, or both), a built-in clock/calendar, and the ability to record video (.ASF) and images (.JPG). View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max). You can store up to 150k images on the included 8GB SD card. The SWR (Snapshot while recording) function can be used during video recording or playback. The Photo Compare function displays 2 images on the screen at the same time. An audio/ video output jack can be used for external viewing on a a larger display (NTSC or PAL).

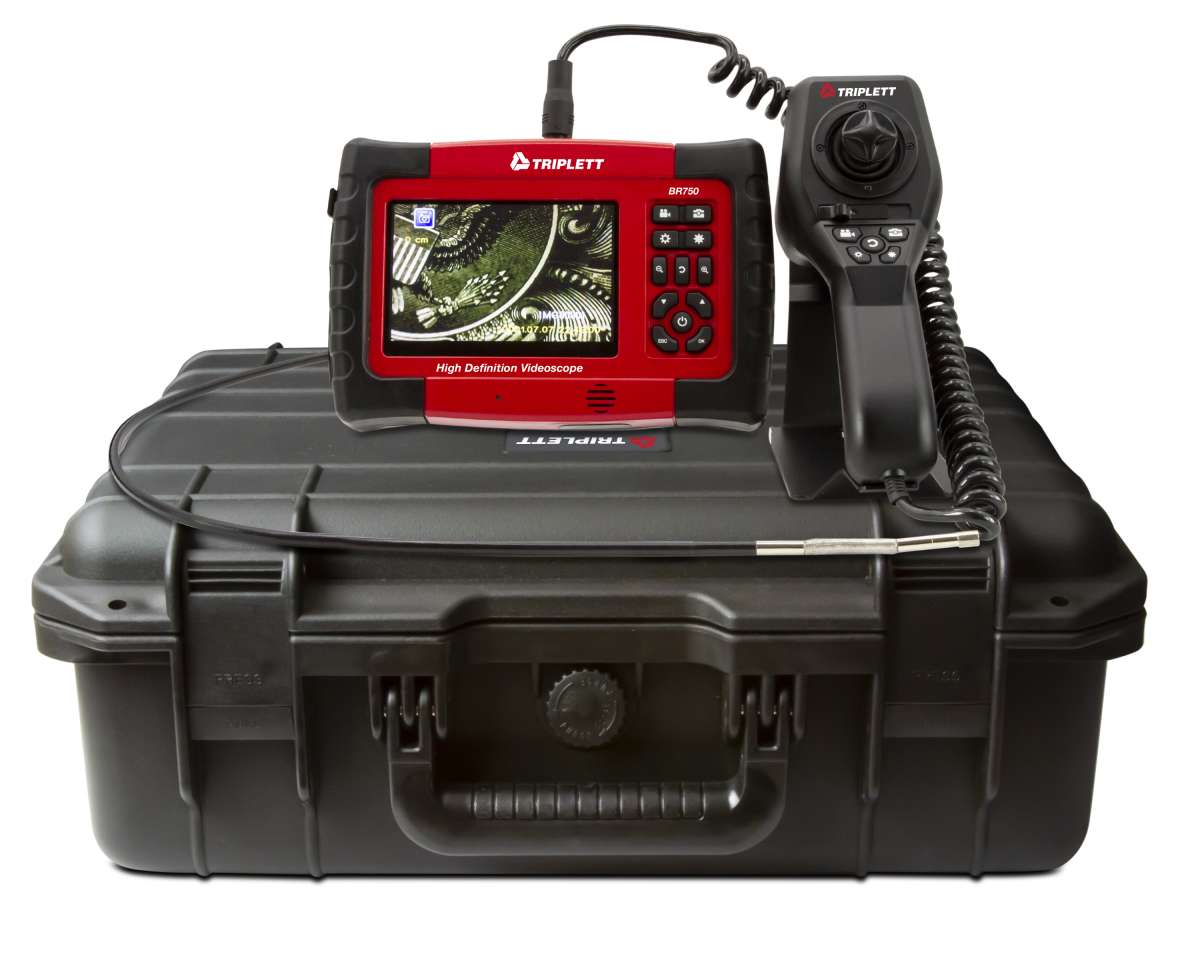

Includes Videoscope, handset with joystick controlled articulating probe, 3.7V rechargeable battery, cleaning kit, 100-240V AC adapter/charger with 4 connectors (US, UK, EU, AUS), SD card, USB and AV cables and heavy duty carrying case. 1 year warranty.

Features:

  • Joystick controller and waterproof (IP67) 6mm camera
  • Articulating probe with joystick adjusts 135° in all directions
  • 4 adjustable LEDs can illuminate totally darkened areas for inspection
  • 5" Color TFT LCD monitor with 800 x 480 resolution
  • 2X Digital Zoom
  • Mirror image mode (vertical, horizontal, or both)
  • Record video (.ASF) and images (.JPG)
  • SWR (Snapshot while recording) function during video recording or playback
  • View captured video/images on the display or transfer to your PC using the USB interface or removable SD card (32GB max)
  • Photo Compare function displays 2 images on the screen at the same time
Specifications
Diameter 6mm
Field of View 60°
Depth of View 0.8~2.4" (20~60mm)
Resolution 640 x 480 pixels
Articulation 135° in all directions
Display Unit
Display 5" Color TFT (800 x 480 pixels)
Interface mini USB/AV output
Video Output Format NTSC or PAL
Storage 8G SD Card included (up to 16GB max)
Still Image Format JPEG (640 x 480)
Video Recording Format ASF (640 x 480)
Power 3.7V Li-Po Battery or AC Adapter
Dimensions (Main Unit) 7.9 x 5 x 2.3" (201 x 127 x 58.4mm)
Weight 2lbs (0.9kg)
Dimensions (Articulating Probe) Handle:  7.5 x 2.8 x 6.5" (191 x 71 x 165mm)
Cable: 3.3ft (1m)
