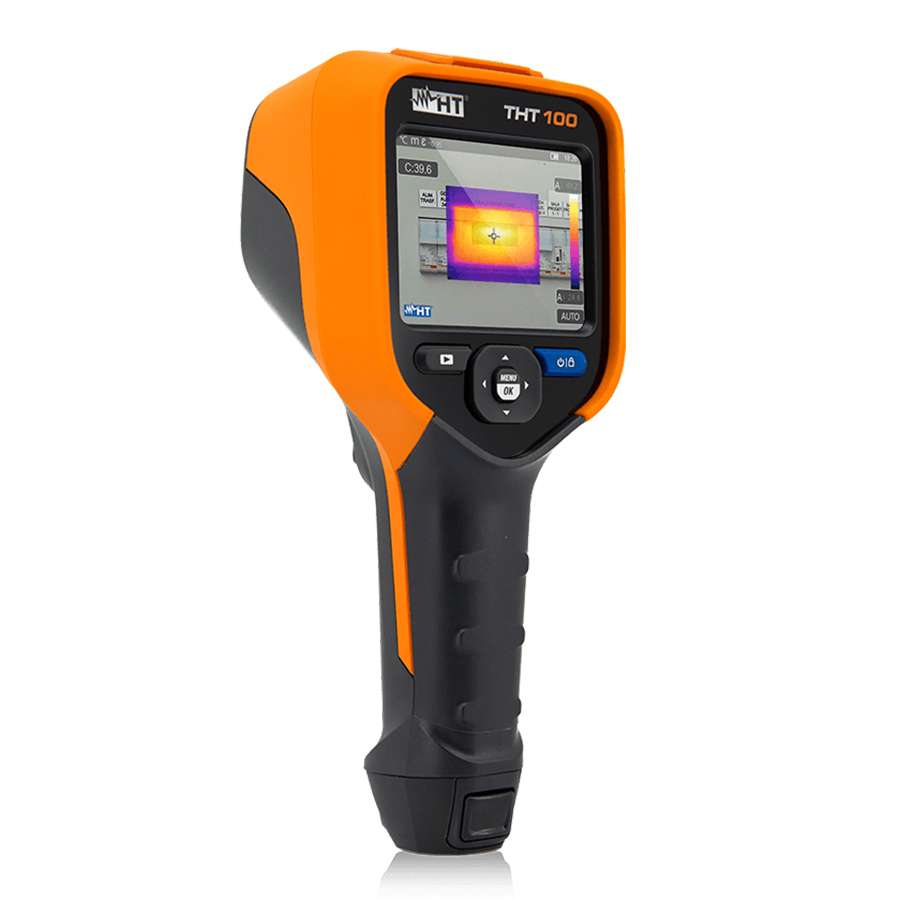

THT100 is the new professional thermal camera equipped with a high resolution 80 x 80pxl IR sensor which makes it suitable for use in electrical, mechanical, plumbing, ventilation and refrigeration systems. It is equipped with a measuring range of -20° C ÷ 650.0° C and a field of view of 21° x 21°, producing high quality thermal images and videos, as well as allowing AutoFusion and Picture in Picture functions.
The thermal imaging camera is equipped with a modern internal icon structure and a high brightness capacitive touch-screen display. It is also equipped with Wi-Fi connection, as well as being compatible with the new and convenient HT Pro Camera application.
| Specifications |
| IR Resolution |
80 x 80 pxl |
| Temperature range |
-20° ÷ 650°C |
| Image frequency |
50Hz |
| Thermal sensitivity / NETD |
<0.05°C @ 30°C / 50mK |
| Field of view (FOV) |
21° x 21° |
| Focal length |
f 1.0 |
| Lens |
7.5mm |
| IFOV |
4.53mrad |
| Focus mode |
focus free |
| Built-in camera |
2 MP, focus free |
| Picture in Picture function |
● |
| AutoFusion image enhancement |
● |
| Uncertainty about the measure |
±2°C (±3.6°F) o±2% of reading |
| Digital zoom |
1x ÷ 32x |
| Measurement tools (in live mode) |
none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode |
| Area measurement information |
max, min, AVG |
| IR Video recording |
● |
| Measurement corrections |
emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation |
| Color Palettes |
iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm |
| Span modes |
Automatic / Manual / Histogram |
| Internal memory storage |
3,4 GB |
| On-camera report building |
text annotation |
| Communication modes |
USB type C, Wi-fi, SD card |
| Display |
touch screen |
| Battery operation time |
4 hours |
| Size (LxWxH) (mm) |
240 x 101 x 110mm |
