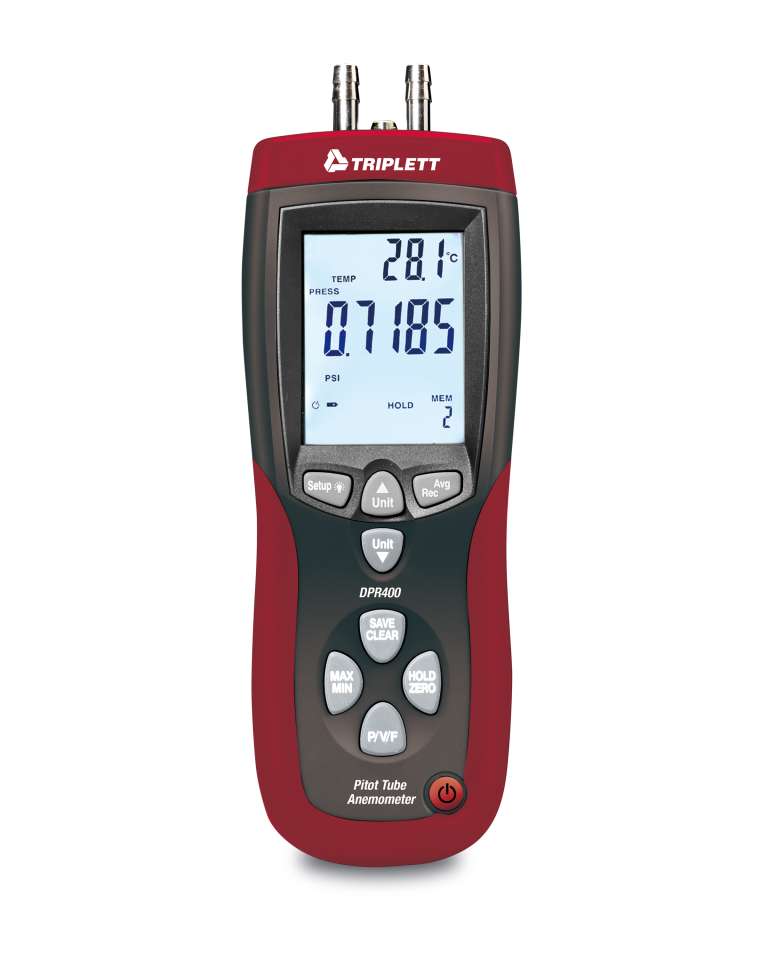

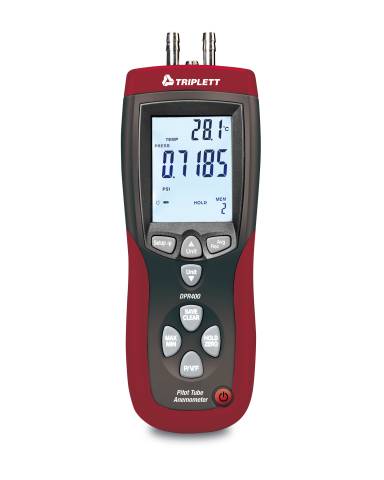

The Triplett Model DPR400 Airflow Meter/Pitot Tube Anemometer is a versatile instrument that simultaneously displays Pressure, Air Velocity, or Air Flow, along with Temperature. It offers the flexibility to use one input to measure the gauge pressure of a single source or both inputs to measure the differential pressure between two points.
The instrument recalls duct shape and parameter settings for airflow measurement automatically at power-up and features a Zero display adjustment for all three modes. Backed by a 2-year warranty for your peace of mind.
Features:
- Multi-Function Display:
- Simultaneously displays Pressure, Air Velocity, or Air Flow plus Temperature.
- Pressure Measurement:
- Use one input to measure the gauge pressure of a single source.
- Differential Pressure Measurement:
- Use both inputs to measure the differential pressure between two points.
- Parameter Recall:
- Duct shape and parameter settings for airflow measurement are recalled at power-up.
- Zero Display Adjustment:
- Zero display adjust for all three modes.
- Data Recording:
- Store/Recall up to 99 readings in each mode.
- Data Download:
- Stored readings can be downloaded via USB interface to your PC using the included software.
- Real-Time Data Acquisition:
- Real-time Data Acquisition for viewing and storing readings directly on your PC.
- Min/Max/AVG Function:
- Min/Max/AVG records highest, lowest, and average readings with a relative time stamp.
- Data Hold:
- Data Hold momentarily freezes the displayed reading for easy viewing.
- Large Backlit LCD Display:
- Measurements are viewed on the large backlit LCD display.
- Complete Package:

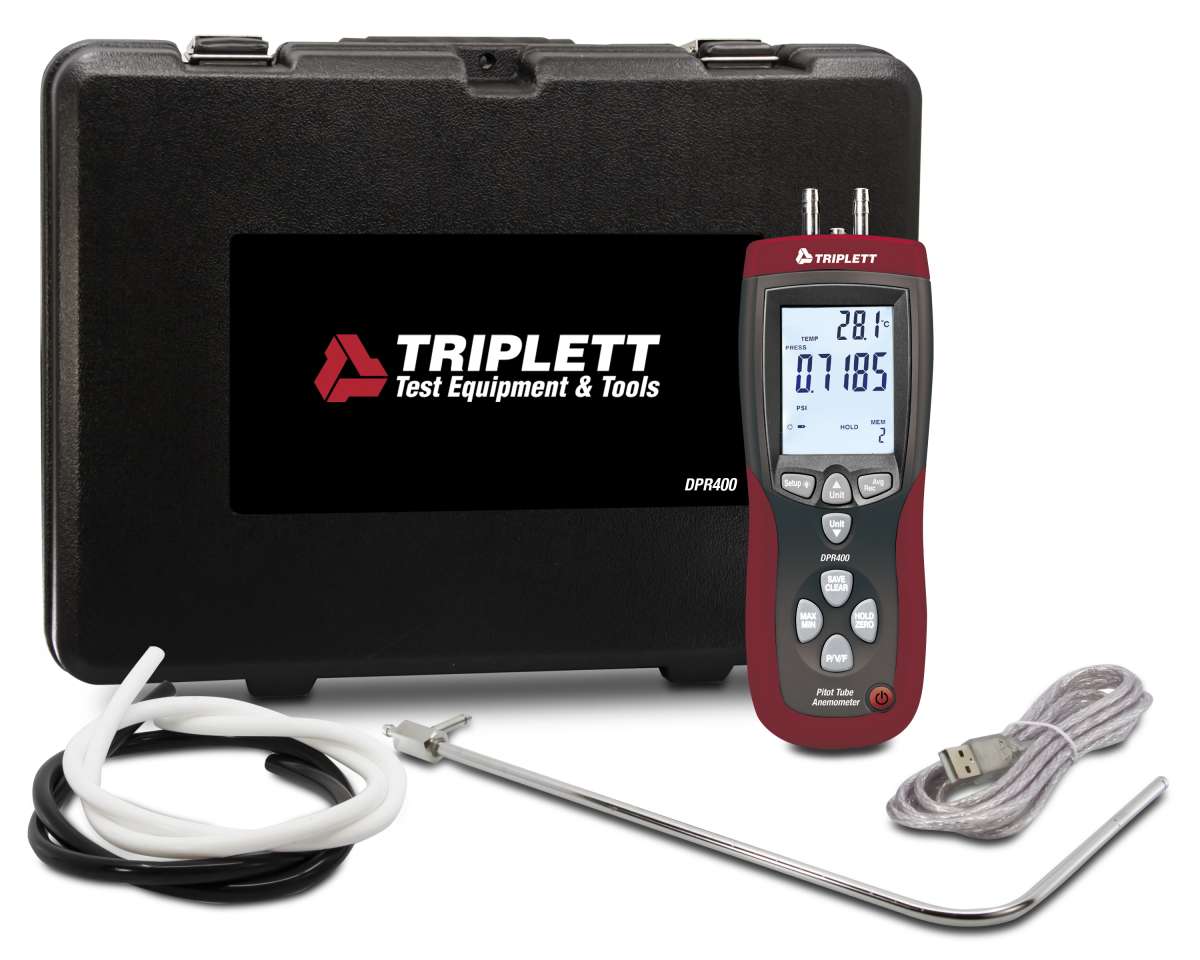

- Includes pitot tube, 2 connection hoses (33.5" (850mm)), software, 9V battery, and hard carrying case for convenience and protection.
- Warranty:
- Backed by a 2-year warranty for your peace of mind.
DPR400 Specifications |
Manometer |
Range (resolution) |
|
0.7252psi (0.0001psi) |
|
50.00mbar (0.01mbar) |
|
20.07inH2O (0.01inH2O) |
|
509.8mmH2O (0.1mmH2O) |
|
5000Pa (1Pa) |
Accuracy |
±0.3% FSO |
Max. Pressure |
10psi |
Air Velocity |
Range (resolution) |
|
200 to 15733ft/min (1ft/min) |
|
1.00 to 80.00m/s (0.01m/s) |
|
3.6 to 288.0km/h (0.1km/h) |
|
2.24 to 178.66mph (0.01mph) |
|
2.0 to 154.6 knots (0.1 knots) |
Accuracy |
±2.5% |
Air Flow |
Range (resolution) |
|
0 to 99.999CFM (0.0001CFM) |
|
0 to 99.999CMM (0.001CMM) |
Air Temperature |
32 to 122°F/0 to 50°C (0.1°F/°C) |
Accuracy |
±2°F/1°C |
PC Interface |
USB |
Data Acquisition |
Real-Time data viewed on your PC |
Power |
9V battery |
Meter Dimensions |
8 x 3 x 2" (203 x 75 x 50mm) |
Weight |
10.6oz (300g) |
Pitot Tube Dimensions |
13 x 8" (329 x 201mm) |
Pitot Tube Diameter |
0.3" (8mm) |
Weight |
5.3oz (150g) |
