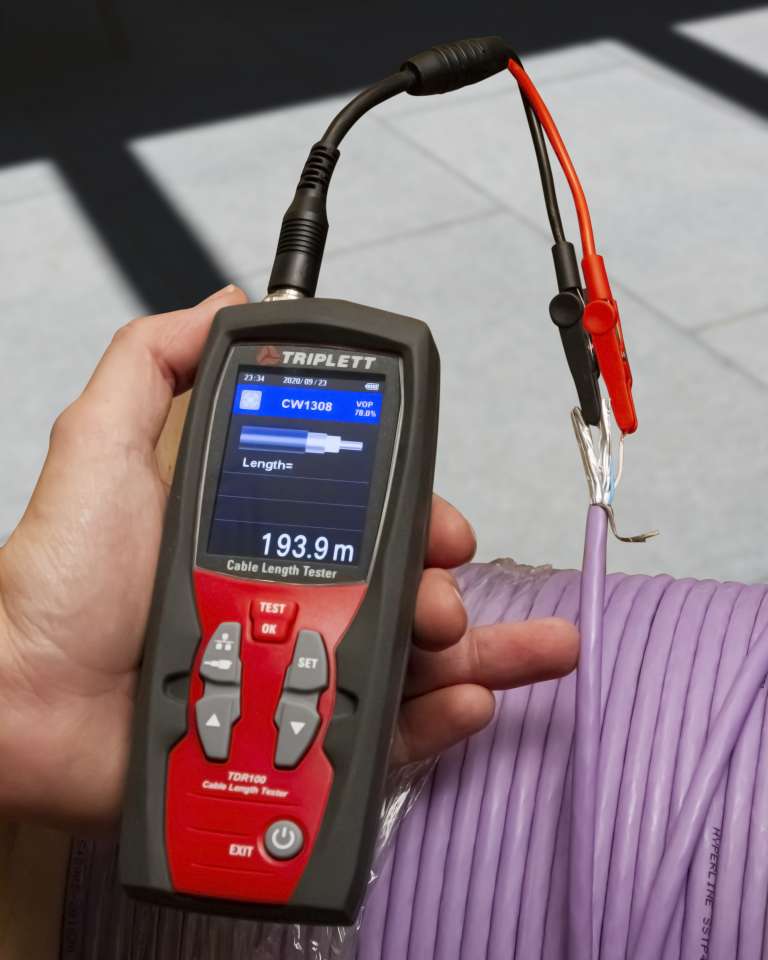

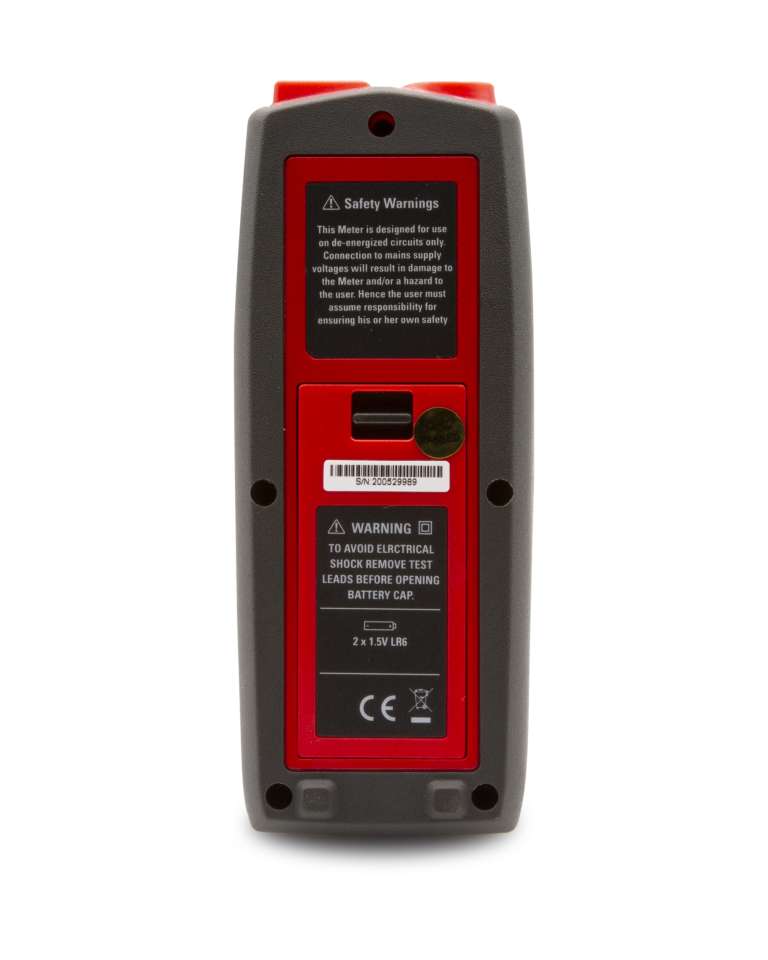

The Triplett TDR100 is a precision cable tester that uses TDR (Time Domain Reflectometer) technology to measure cable length. It can be used for any cable consisting of at least 2 insulated metallic elements, one of which may be the sheath or shield of the cable. The meter has automatic internal matching networks to allow testing with automatic selection range, which correspond to power, telephony, CAT V, LAN, etc. cables.

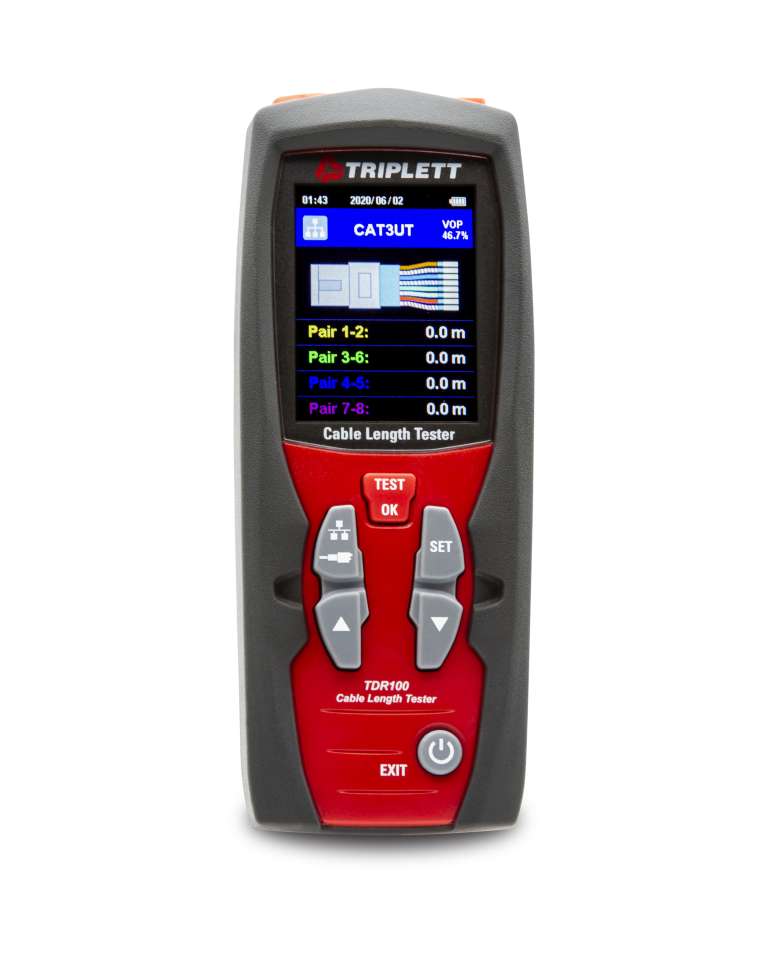

The meter can be closely matched with the cable under test using the function selection keys. The velocity of propogation value (V.O.P.) can be similarly adjusted to match the cable under test, ensuring an accurate distance measurement. It features a 2.4” TFT color display with an easy-to-use onscreen menu, 20 built-in groups of standard cable V.O.P. (velocity of propagation) values, and 99 memory locations store traces for future analysis.

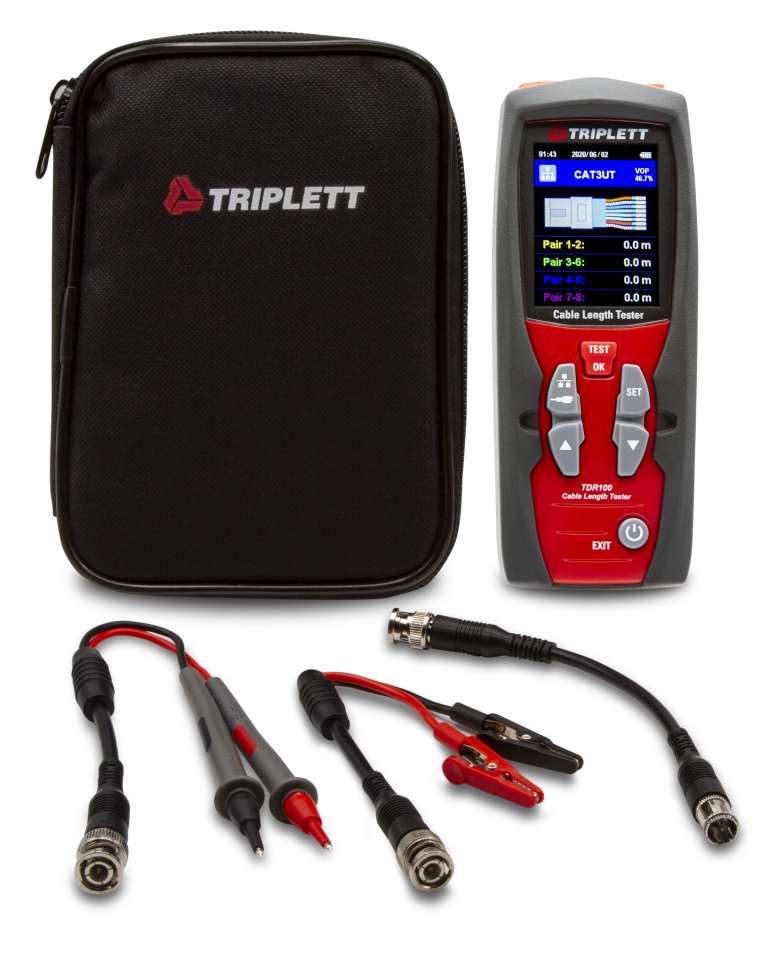

An Auto-Sensitivity function provides a closer match to a wide range of cables with only the V.O.P. settings required. The meter comes complete with 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case. 1-year warranty.
Features:
- Uses TDR (Time Domain Reflectometer) technology to measure cable length

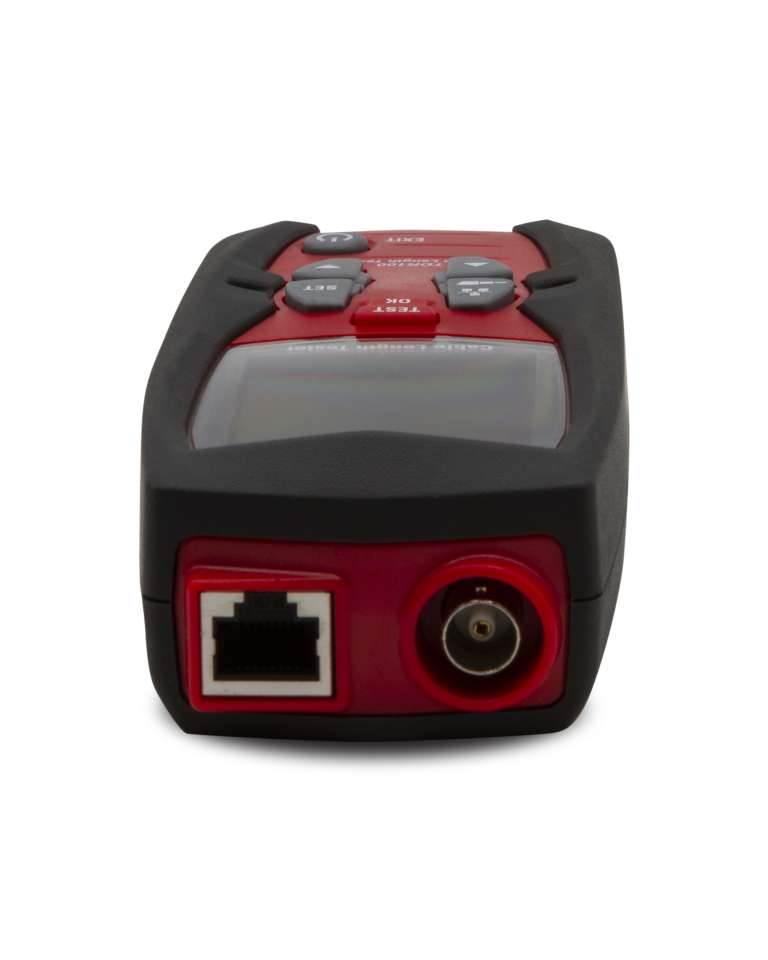

- BNC and RJ45 input connectors
- 2.4” TFT color display
- Easy-to-use onscreen menu
- Auto-Zero and Auto-Range
- Built-in 20 groups of standard cable V.O.P. (velocity of propagation) values
- Auto-Sensitivity provides a closer match to a wide range of cables with only the V.O.P. settings required
- 99 memory locations store traces for future analysis
- Includes 2 AA batteries, BNC (M) connector to standard test leads, BNC (M) connector to alligator clips, BNC (M) connector to (M) F connector, and carrying case
- 1 Year Warranty
| Specifications |
| Minimum Distance |
>5m |
| Maximum Distance |
Dependent upon the cable’s V.O.P. |
| 3.0km@V.O.P.≤99.9% |
| 2.4km@V.O.P.≤80.0% |
| 2.0km@V.O.P.≤66.0% |
| 1.5km@V.O.P.≤50.0% |
| Resolution |
0.1m |
| Accuracy |
±(2% ± 0.2m) <100m; ±(2% ± 0.5m) ≥100m |
| Velocity Factor |
Adjustable from 1.0% to 99.9% |
| Cable Library |
20 standard cable types |
| Memory Location |
99 for custom cable types |
| Power |
2 AA batteries |
| Dimensions |
6 x 2.4 x 1.3” (152 x 61 x 34mm) |
| Weight |
8.1oz (230g) |
