Triplett VB40-NIST Vibration Meter

The Triplett VB40 Vibration Meter is a versatile and feature-rich instrument designed for precise vibration measurement and analysis in various industrial applications. With wide-ranging capabilities, including adjustable acceleration, velocity, and displacement settings, this meter provides accurate readings across diverse frequency spectrums. Complete with short probe (installed on meter) and long probe sensor attachment, (2) 1.5V x AAA batteries, and a hard carry case.

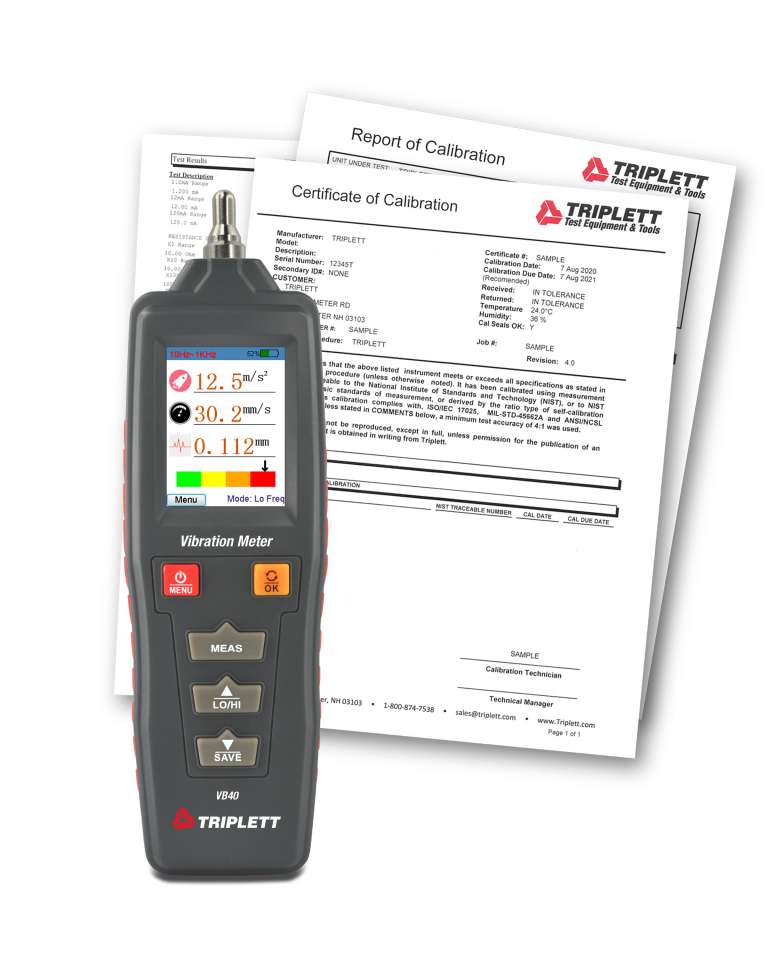

VB40-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process

Features:

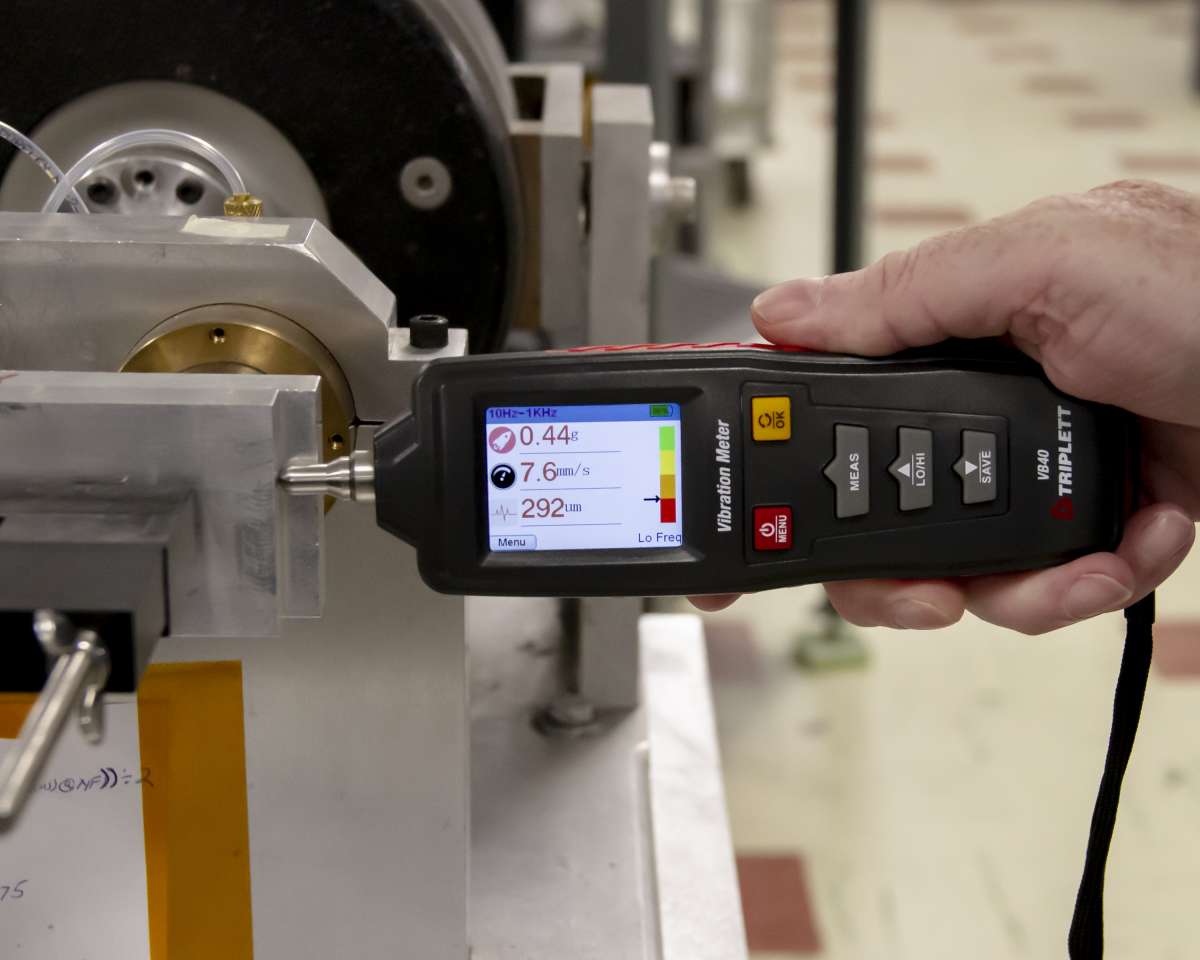

• On the spot vibration meter for assessing equipment health or conducting maintenance
• Acceleration: 0.1 to 199.9m/s2; 655.8ft/sec2;20.3g Velocity: 0.1 to 199.9mm/s, 7.87in/s; 2.00cm/s; 200mm/s Displacement: 0.001 to 1.999mm
• Frequency ranges: 10Hz to 1KHz (LO) and 1KHz to 4KHz (HI)
• Resolution to 0.1m/s2; 0.1mm/s
• Basic accuracy of ±(5% + 2 digits)
• LCD Auto-screen rotation -screen automatically adjusts its orientation based on the device's physical orientation
• Store and View Files/ Manual Recall - 500 Total Readings (5 groups of 100 readings per group)
• Machine Level Setting allows for user setting baseline or reference level for vibration on a particular machine
• Worklight for working in dimly lit areas
• Selectable Auto Power Off Time of 0 to 9 mins

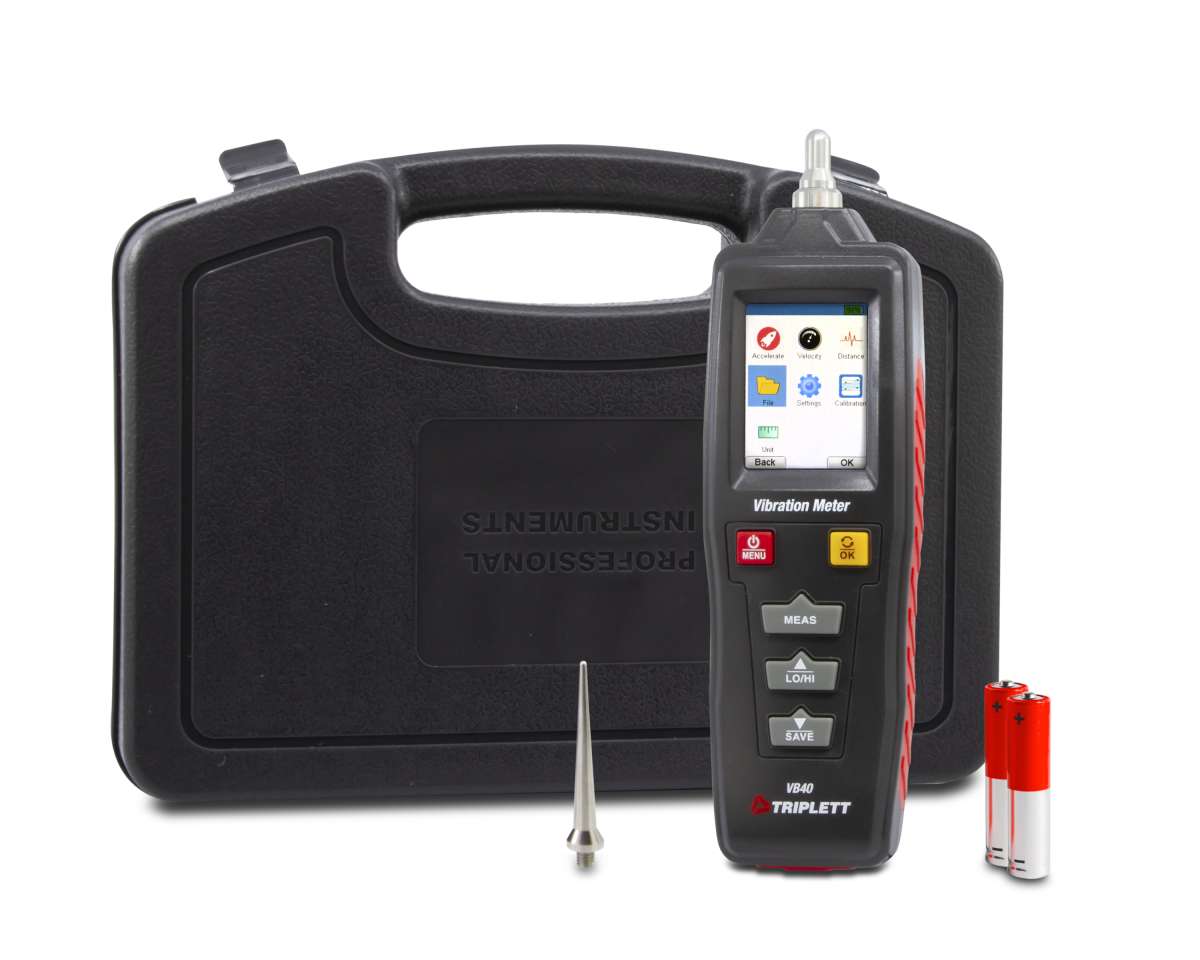

• Includes short probe (installed on meter) and long probe sensor attachment, (2) 1.5V x AAA batteries, and a hard carry case
• 1-year warranty
