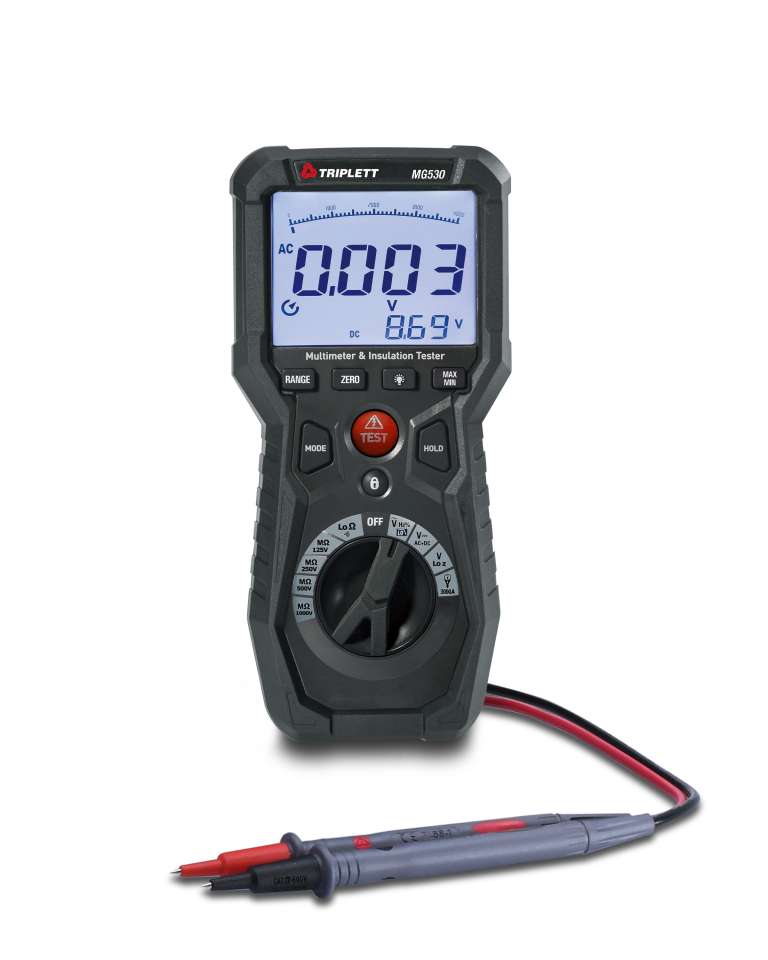

The Triplett MG530 is a versatile tester that offers a wide range of functions. It can test insulation resistance up to 4000MΩ using four test voltages (125V, 250V, 500V, and 1000V). Additionally, it can measure AC/DC Voltage, Resistance, Frequency, and Continuity. This tester comes equipped with a Lock Power function for hands-free operation, allowing you to focus on your measurements. It also features a live circuit voltage indicator for added safety. The MG530 includes a 3000A AC Current measurement option using an optional flex clamp.
For enhanced functionality, it offers a LoZ (impedance) mode to identify ghost voltages and an LPF (low pass filter) mode for filtering frequency and harmonic interference when measuring variable frequency drives. The backlit 4000 count LCD display with bargraph provides clear and easy-to-read results. Safety is a priority with a CAT IV 600V safety rating. The package includes test leads, (6) AA batteries, and a carrying case for convenience. The MG530 is backed by a 1-year warranty.
MG530-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
Features:
- Insulation Resistance Testing:
- Tests insulation resistance up to 4000MΩ with four test voltages (125V, 250V, 500V, and 1000V).
- Lock Power Feature:
- Allows for hands-free operation during testing.
- Wide Range of Measurements:
- Measures AC/DC Voltage, Resistance, Frequency, and Continuity.
- Live Circuit Voltage Indicator:
- Provides a clear indication of live circuit voltage for added safety.
- Additional Features:
- Includes a 3000A AC Current measurement option (using optional flex clamp), LoZ (impedance) mode for identifying ghost voltages, and LPF (low pass filter) mode for filtering interference.
- Backlit LCD Display:
- Features a backlit 4000 count LCD display with bargraph for easy reading.
- Safety Rating:
- CAT IV 600V safety rating ensures secure operation.
- Complete Package:

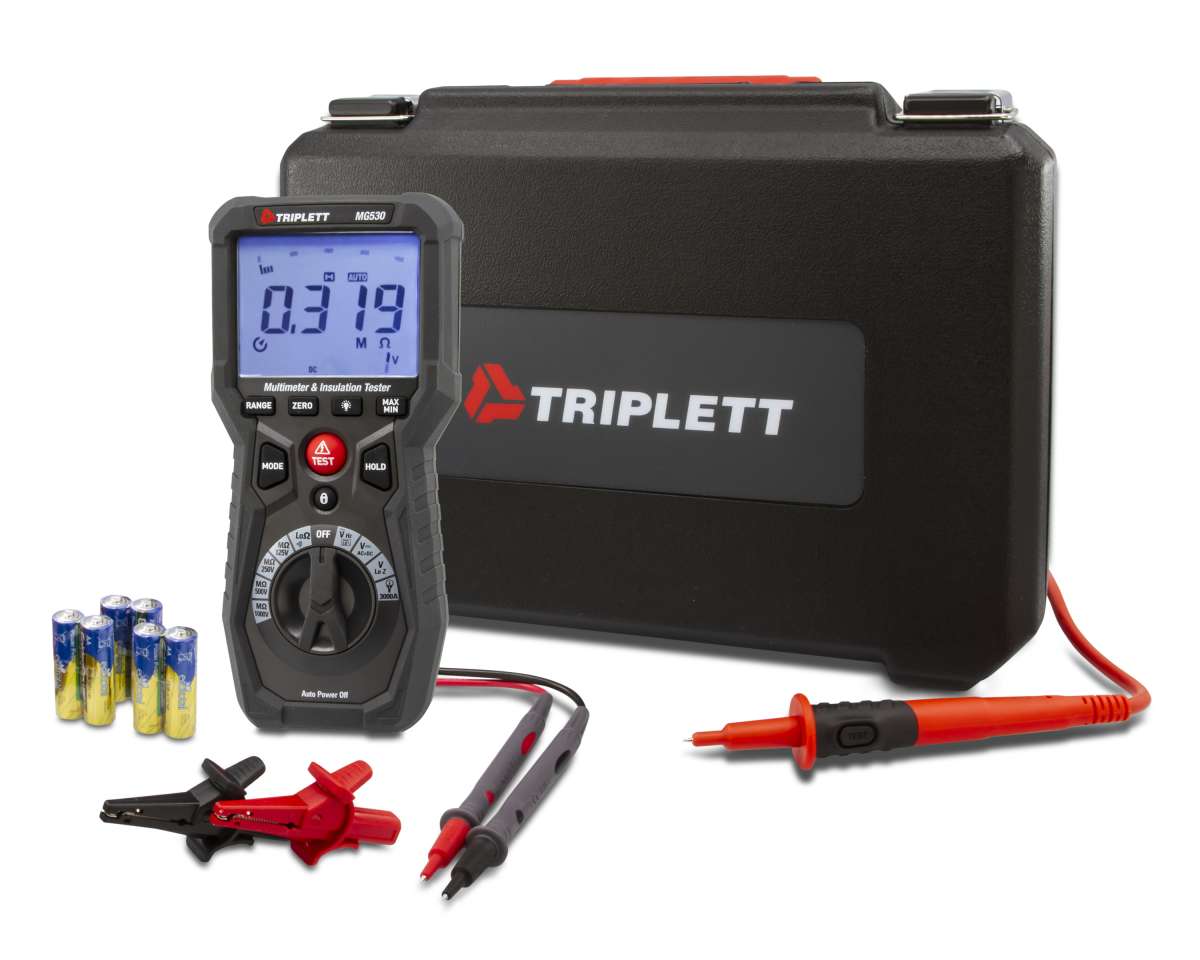

- Includes test leads, (6) AA batteries, and a carrying case for your convenience.
- Warranty:
- Backed by a 1-year warranty for peace of mind.
| Specifications |
| Insulation Range |
4.000MΩ, 40.00MΩ, 400.0MΩ, 4000MΩ |
| Accuracy |
±3% |
| Resolution |
0.01MΩ |
| Test Voltages |
125V, 250V, 500V, 1000V |
| AC/DC Voltage |
1000V |
| AC Current |
3000A (optional flex probe) |
| Resistance |
400Ω |
| Frequency |
40Hz-1kHz |
| Safety Category |
CAT IV 600V |
| Power |
(6) AA batteries |
| Dimensions |
7 x 3 x 2” (175 x 85 x 55mm) |
| Weight |
1.8lbs (800g) |
