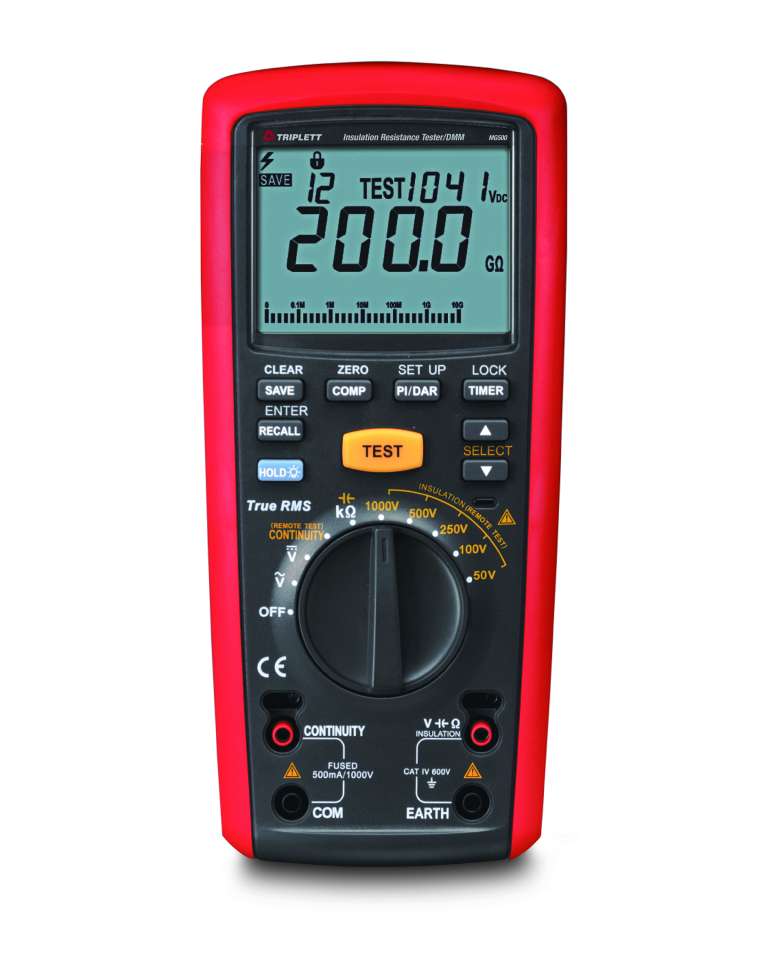

The Triplett Model MG500 Insulation Tester is a comprehensive testing instrument designed to measure insulation resistance up to 200GΩ. It offers a wide range of testing capabilities, including five test voltages (50V, 100V, 250V, 500V, and 1000V), as well as measurements of AC/DC Voltage, Resistance, Capacitance, Frequency, and Continuity.
The Triplett Model MG500 Insulation Tester is a versatile and reliable instrument that simplifies insulation testing and electrical measurements across various applications. It offers advanced features and a complete set of accessories to meet your testing needs with accuracy and convenience.
MG500-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
Features:
- Insulation Resistance to 200GΩ:
- Capable of measuring insulation resistance up to 200GΩ, ensuring thorough insulation testing.
- Multiple Test Voltages:
- Supports five test voltages (50V, 100V, 250V, 500V, and 1000V) to suit various testing scenarios.
- Polarization Index (PI) and Dielectric Absorption Rate (DAR):
- Features PI and DAR measurements for advanced insulation analysis.
- Lock Power Feature for Hands-Free Operation:
- Provides a lock power function for hands-free and stable testing.
- Timed Test Function:
- Includes a timed test function with settings from 1 to 10 minutes in 1-minute increments.
- ETL Listed:
- ETL listing ensures product safety and compliance with industry standards.
- Comparison Mode (Pass/Fail):
- Offers a comparison mode to quickly determine if test results meet the specified criteria.
- Leakage Current Measurement:
- Allows for leakage current measurement to assess insulation integrity.
- AC/DC Voltage, Resistance, Capacitance, Frequency, and Continuity Measurement:
- Performs a wide range of electrical measurements for comprehensive testing.
- Complete Package:
- The insulation tester includes test leads, test probes, a remote control probe, alligator clips, (6) AA batteries, and a durable carrying case.
- CAT IV 600V Safety Category:
- Rated for CAT IV 600V safety category, ensuring safe operation in demanding electrical environments.
- Warranty:
- Backed by a 1-year warranty, providing assurance of product quality and reliability.
| Specifications |
| Insulation Range |
50MΩ, 100MΩ, 2000MΩ, 500MΩ, 2000MΩ,
1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ |
| Accuracy |
±3% |
| Resolution |
0.01MΩ |
| Test Voltages |
50V, 100V, 250V, 500V, 1000V |
| AC/DC Voltage |
600V |
| Leakage Current |
10 to 2000µA |
| Resistance |
10MΩ |
| Low Resistance |
100Ω |
| Frequency |
45Hz-1kHz |
| Capacitance |
500µF |
| Safety Category |
CAT IV 600V |
| Power |
(6) AA batteries |
| Dimensions |
8.8 x 4.1 x 2.3” (225 x 103 x 59mm) |
| Weight |
1.5lbs (0.7kg) |
