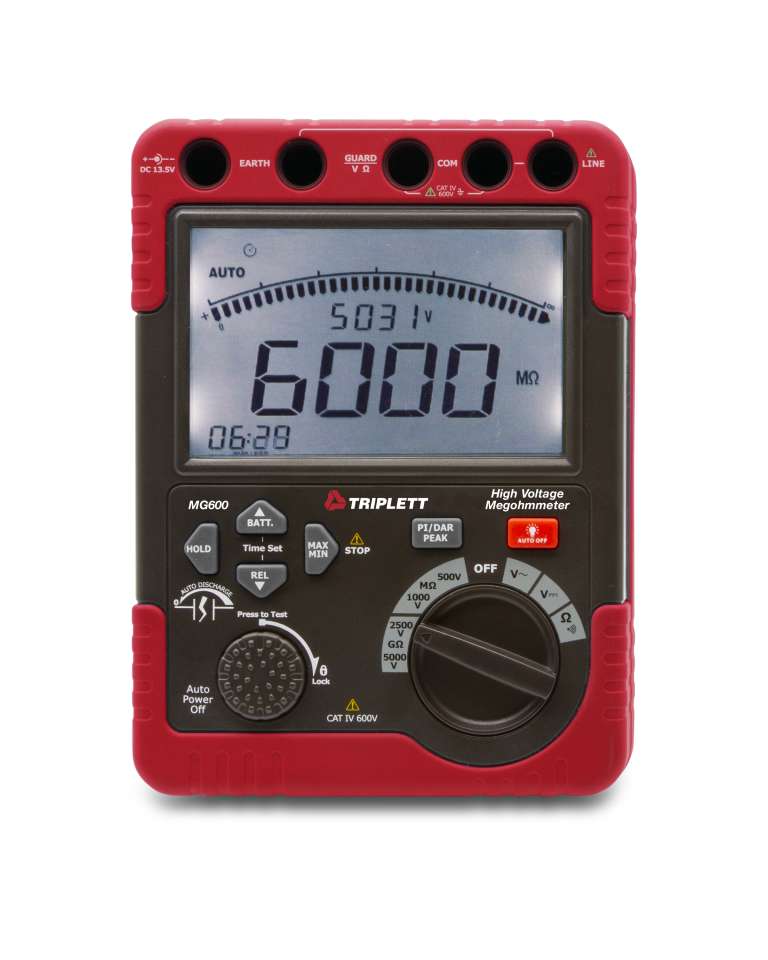

The Triplett Model MG600 High Voltage Insulation Tester tests Insulation Resistance to 60GΩ using four test voltages (500V, 1000V, 2500V, and 5000V), and also measures AC/DC Voltage with Relative Mode, Peak Hold and Min/Max, plus Low Resistance and Continuity.

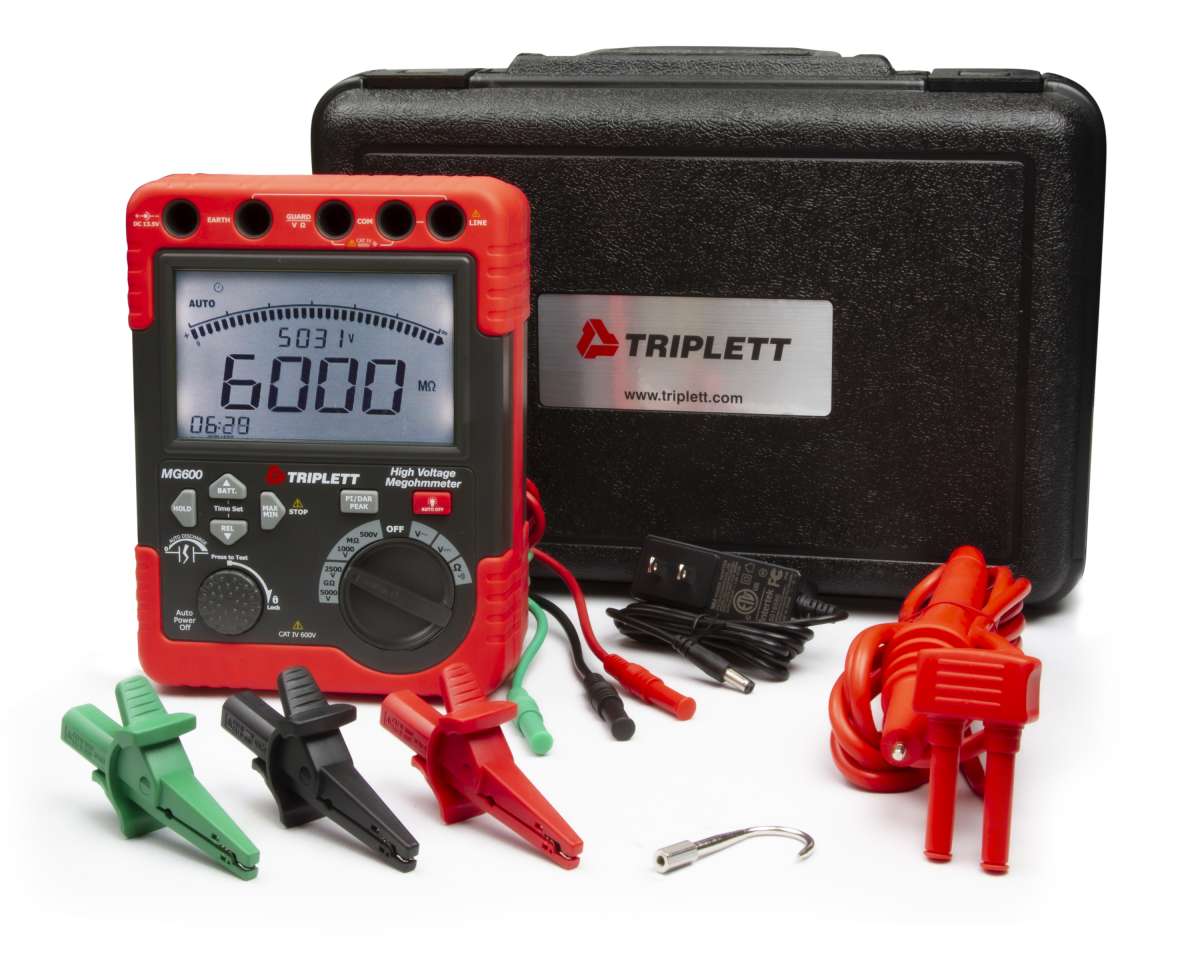

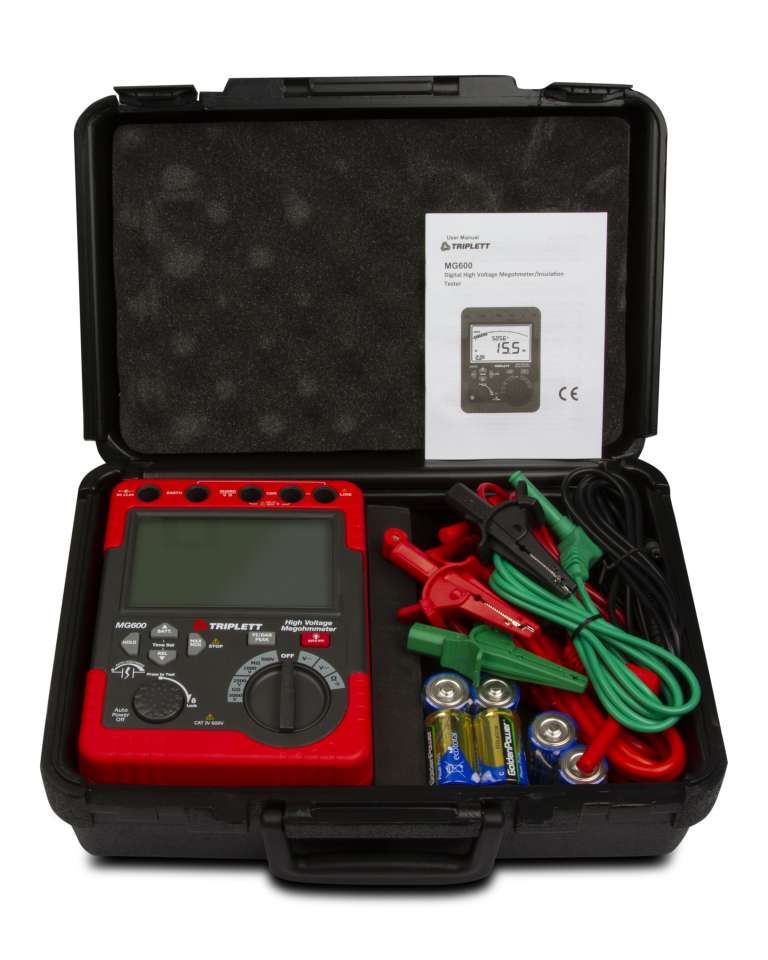

Additional features include Polarization Index ((PI), Dielectric Absorption Rate (DAR), Backlit 6000 count display with bargraph, Timed Test function (1 to 15 minutes in 1 minute increments), a Lock Power function for hands-free operation, Data Hold to "freeze" the reading on the display, Auto power off, plus built-in battery check and live ciruit voltage Indicatior. CAT IV 600V safety category. Includes heavy duty test leads, (8) C batteries, 120V AC adapter, and hard carrying case. 1-year warranty.
Features:
- Insulation Resistance to 60GΩ
- 500V, 1000V, 2500V, and 5000V Test Voltages
- Polarization Index ((PI)
- Dielectric Absorption Rate (DAR)
- Backlit 6000 count display with bargraph
- Lock Power feature for hands-free operation
- Timed Test function (1 to 15 minutes in 1 minute increments)
- AC/DC Voltage measurement with Relative Mode, Peak Hold and Min/Max
- Low Resistance and Continuity measurement
- Live circuit voltage indicator
| Specifications |
| Insulation Range |
6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ |
| Accuracy |
±2.5% |
| Resolution |
0.005MΩ |
| Test Voltages |
500V, 1000V, 2500V, 5000V |
| AC/DC Voltage |
600V |
| Resistance |
600Ω, 6kΩ |
| Continuity |
<50Ω |
| Safety Category |
CAT IV 600V |
| Power |
(8) C batteries or AC Adapter |
| Dimensions |
7.8 x 5.8 x 3.4” (198 x 148 x 86mm) |
| Weight |
3.2lbs (1.4kg) |
