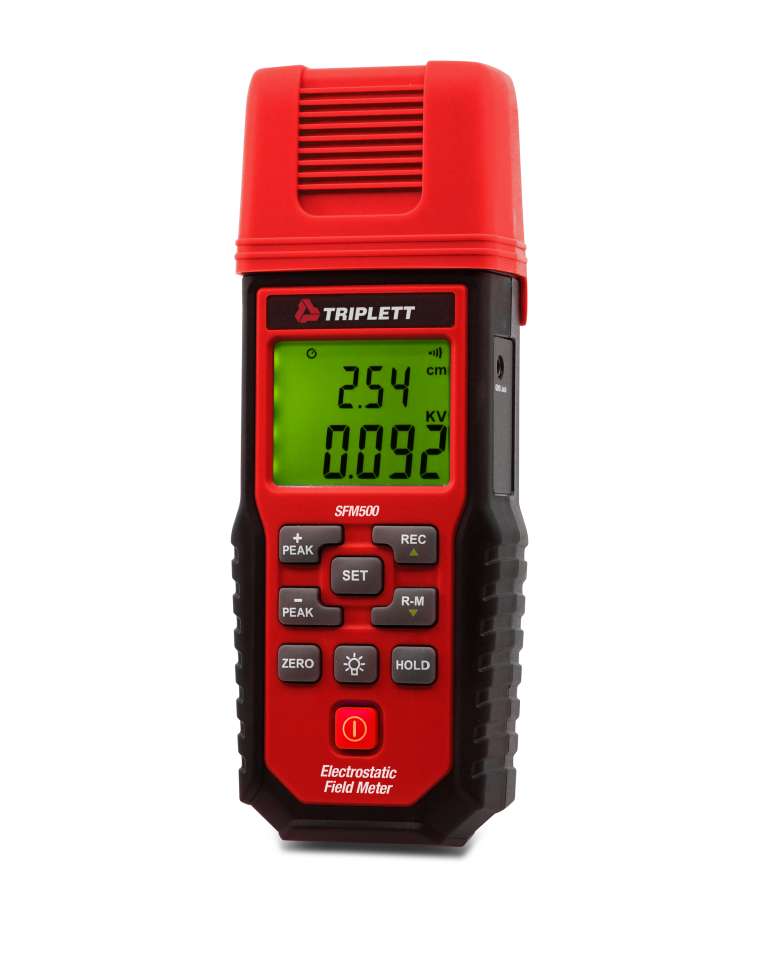

The Triplett Model SFM500 Electrostatic Field Meter is used for the non-contact measurement of an electrostatic charge on a body or object. It has a range of -19.000kV to +19.000kV and a measuring distance of 1" (2.54c). Measurements are read on the 4.5 digit (19,999 count) backlit LCD display.
It features user programmable audible high/low alarm settings, Data hold function that freezes the reading on the display, Min/Max captures the highest and lowest readings, and a Zero function that clears residual readings on the display and resets it to zero. You can manually store/recall 99 readings. Additional features include a low battery indicator, Auto power off (with disable) to conserve battery life, and a tripod mount for hands-free operation.
Features:
- Measures static voltage on a charged body without contact
- Measuring range： -19.000kV to +19.000kV
- Measuring distance：1" (2.54c)
- Sampling rate：500ms
- 4.5 digit backlit LCD display
- User programmable audible high/low alarm settings
- Data hold freezes the reading on the display
- Min/Max captures the highest and lowest readings
- Zero function clears residual readings on the display and resets it to zero
- Manual store/recall 99 readings
- Includes protective sensor cover, 9V battery, ground wire with alligator clip, and carrying case
| Specifications |
| Measuring Range |
-19.999kV to +19.999kV |
| Resolution |
0.001kV |
| Accuracy |
±(5% + 10 digits) |
| Sample Rate |
500ms |
| Measuring Distance |
1" (2.54cm) |
| High/Low Alarms |
0.001kV to 18.000kV |
| Memory |
Manually store/recall 99 readings |
| Power |
9V battery |
| Dimensions |
5.8 x 2.6 x 1.5" (148 x 65 x 37.5mm) |
| Weight |
7.4oz (210g) |
